4 in 1 press tool for Brose C, T, S and S-Mag

This is a solid stainless steel press tool designed to complete 4 of the more awkward press jobs that are encountered when overhauling a Brose motor.
1, Remove the right hand crankshaft bearing from the torque sensor.
2, Machined to be an exact fit to remove the drive pulley sprag bearing and race.
3, Used to set the exact depth of the crankshaft needle roller bearing once the extra seal has been fitted.
4, Machined to set the right hand crankshaft bearing at the exact depth on the torque sensor.

This tool is designed to align the drive gear and set the bearing sprags to allow the gear to be re-fitted onto the freewheel sleeve of the Bosch Gen 4 motor.

This is a genuine Bosch lockring tool to remove the castellated nut or threaded chain guard from the front sprocket of a Bosch Classic motor. Cheaper alternative to the genuine Bosch tool

Generation 1 (Gen 1) covers Classic Line and Classic Line +. These motors have a large sprocket and look like the motor here.

IceToolz lockring tool to remove the castellated nut or threaded chain guard from the front sprocket of a Bosch Gen 2 motor. Cheaper alternative to the genuine Bosch tool

Generation 2 (Gen 2) covers Active Line and Performance Line from 2014 to 2018 and Performance Line CX from 2017 to 2019. These motors have a small sprocket and look like the motor here.

This is a genuine Bosch lockring tool to remove the castellated nut or threaded chain guard from the front sprocket of a Bosch Gen 2 motor.

Generation 2 (Gen 2) covers Active Line and Performance Line from 2014 to 2018 and Performance Line CX from 2017 to 2019. These motors have a small sprocket and look like the motor shown here.

This is a high quality 3/8 drive Bosch lockring tool to remove the castellated nut or threaded chain guard from the front sprocket of a Bosch Gen 3 motor.

Generation 3 (Gen 3) covers Active Line, Active Line Plus and Performance Line from 2018. These motors have a large front sprocket and look like the motor Below.



This is a high quality Bosch lockring tool to remove the castellated nut or threaded chain guard from the front sprocket of a Bosch Gen 4 motor.

Generation 4 (Gen 4) covers the Performance Line CX and cargo line from 2020 These motors have a large front sprocket and look like the motor Below.

Bosch main motor bearing tool

This tool will ensure that your new main motor bearing will be fitted without damage. The main motor bearing fitted within the Bosch Gen 2 motor is a large bearing with extremely small ball bearings within it. These ball bearings can be very easily damaged when this bearing is fitted. The main motor bearing tool can be used to press the bearing into the motor cover and then support the bearing while the sprocket carrier/boss is pressed into the bearing.

Bosch main motor bearing with fitting tool

This tool will ensure that your new main motor bearing will be fitted without damage. The main motor bearing fitted within the Bosch Gen 2 motor is a large bearing with extremely small ball bearings within it. These ball bearings can be very easily damaged when this bearing is fitted. The main motor bearing tool can be used to press the bearing into the motor cover and then support the bearing while the sprocket carrier/boss is pressed into the bearing.

Brose C, T, S and S-Mag lockring / spider nut tool

This is a castellated tool to fit all Brose chainring spider nut / lockring nuts. The tool has a 3/8″ socket drive for your ratchet or Torque wrench.

Crank arm puller for Bosch, Brose, Impulse, Yamaha. This puller will fit all models of all motors.

It fits ISIS drive cranks, square drive cranks and the Bosch Gen 3 Octalink. There is a button on the end and you just need to use it or not, depending on the type of crank you have.

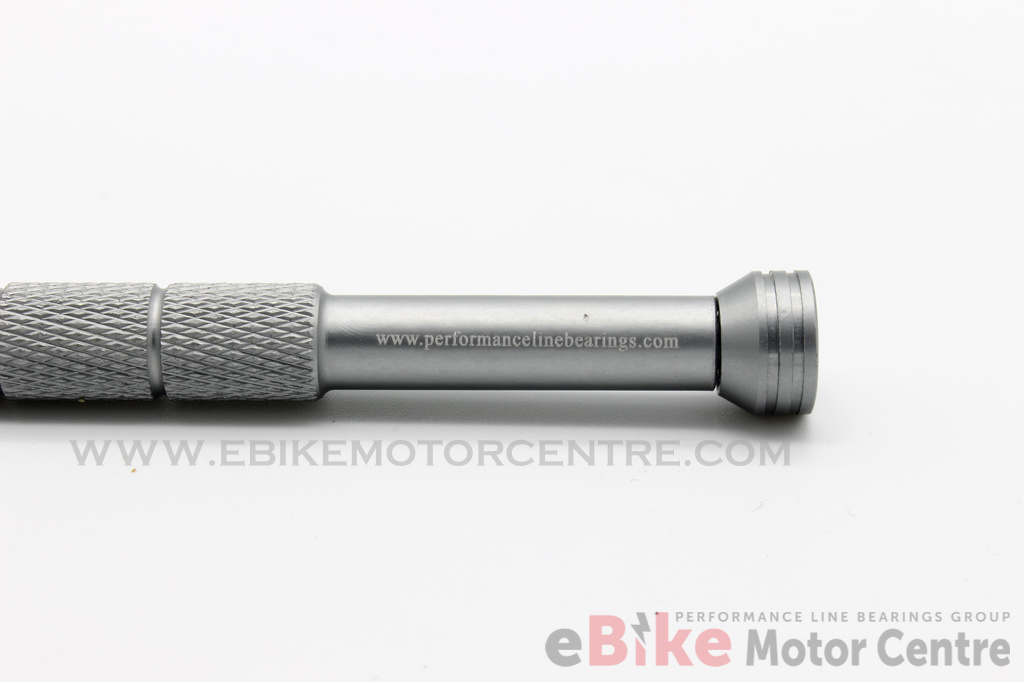

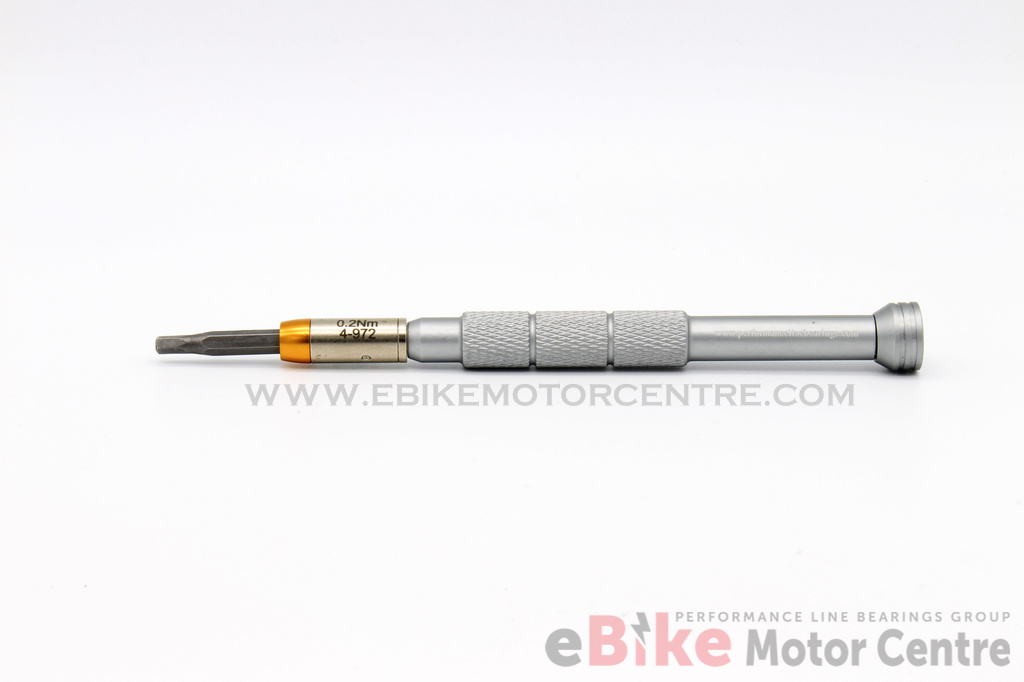

High precision 0.2Nm torque driver for Brose drive belt tension

We have sourced a high quality, German manufactured 0.2Nm torque driver to set the drive belt tension of the Brose motor. The torque bit will tighten the belt tensioner screw to exactly 0.2Nm and then it will start clicking and will not let you overtighten the screw.

This tool will fit ALL Brose motors.

If you want to fit the MudStop to your Bosch motor and have the plastic motor covers fitted, you may require the cutting tool to open out the case to accommodate the MudStop bearing seal. See instructions here:

4 in 1 press tool for Brose C, T, S and S-Mag

This is a high quality stainless steel press tool, designed remove the chainring spider safely, without damaging the internal motor parts. (Puller not included).
Download more information here:


Yamaha 36mm lockring tool

This tool has been specifically manufactured to fit between the spider and the 36mm nut that holds the front chainring spider on the Yamaha motor.
It has a 3/8″ socket drive for your ratchet or Torque wrench.

Tool will not fit Yamaha PW-X, X2 or X3 see here: PW-X Tool

NOTE: This tool will fit motors listed below.
Yamaha PW Series 1, 2 and 3
Yamaha PW-SE
Yamaha PW-ST
Yamaha PW-TE
Yamaha PW-CE

This is a 36mm thin walled socket to fit the Yamaha PW / PW-SE, ST, TE & CE 36mm chainring spider nut. Please note, if you have a castellated nut you will need Yamaha tool part number PLA00934.

This socket will work on the deepest chainring spiders, including Giant Syncdrive.
