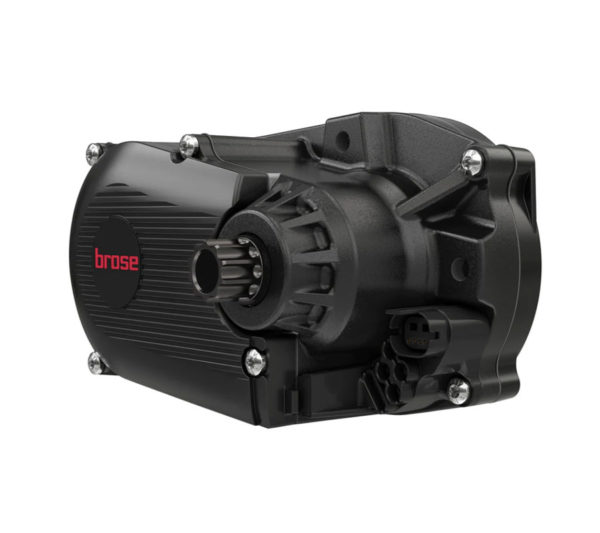

Brose ebike motor Drive S Mag Horizontal Factory Remanufactured Unit G74105 – Equivalent to E06855

£593.44 incl VAT£494.53 excl VAT

SKU: G74105-100 Category:


Part NumberG74105-xxx
Engine typeBrushless Internal Rotor
Weight2,900 g
Dimensions L/H/W198mm/137mm/99mm (Casing Width)
198mm/137mm/150mm (Axis width)
Nominal Voltage36 V
Continuous Rated Power250 W
Torque90 Nm
Maximum support380%
Support up to25 km/h
Walking support up to6 km/h
Light sourceHeadlamp 2 A/12 V = 24 W Rear lamp 0,2 A/12 V = 2,4 W
Protection against ingress (seal)IP56

Please note the following important information:

Please contact us to discuss the software application required for your bike manufacturer (Specialized, Fantic, BMW, etc.)

All motors purchased from us have the option to be upgraded for enhanced resistance to water ingress and longevity. Please contact us for further details.
